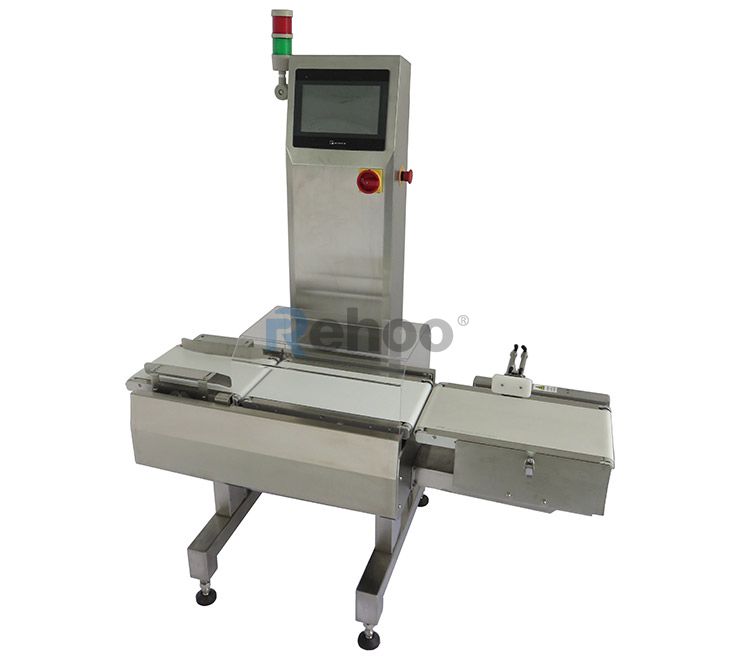

CWC-M220
M220
Applied to automatic online package weighing and sorting
Caracteristicas

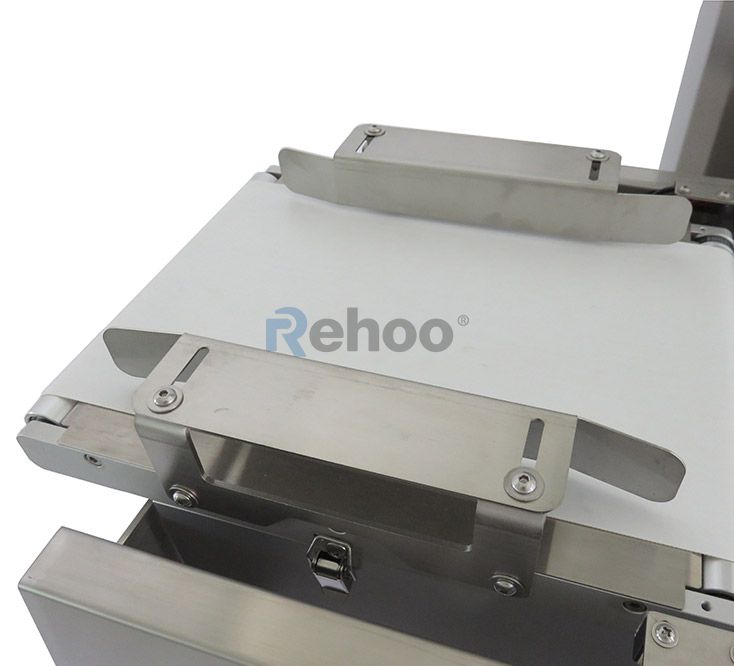

●Tool free removable for conveyor.
●Platform height adjustable.
●High precision AD unit
●Adopted with advanced DSP technology to perform high speed weighing.
●100 recipe preset, easy to edit and shift.
●Automatic product setup wizard.
●NG recording (standard) with versatile statistic optional
●10 inch touch screen HMI
●Mitsubishi PLC system
Presupuesto
MODLE | CWC-M220 |
Weighing Capacity | 14-1200g |
Weighing Accuracy | ±0.2g |
Weighing Speed | Max.120m/min |
Conveying | Food Belt(Belt width:220mm) |

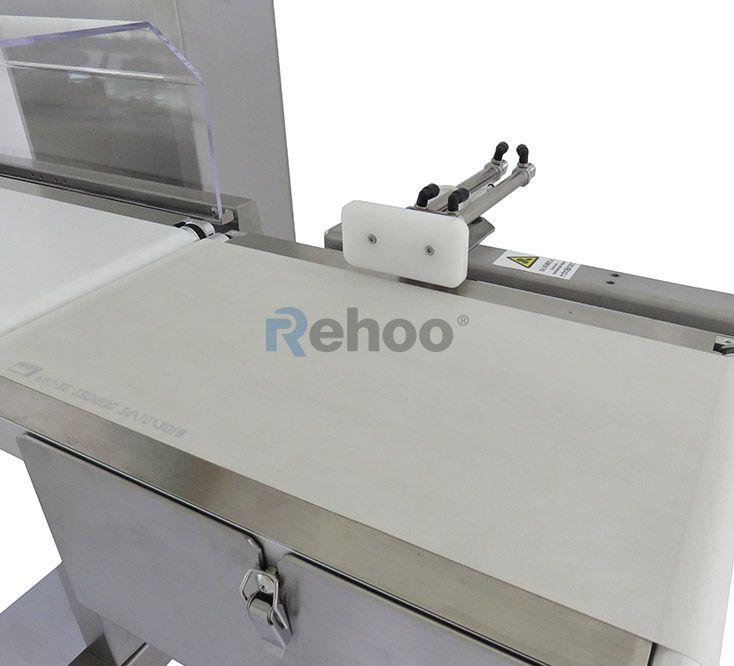

Reject | Air/Pusher Rejection System |
Machine Size | L1260*W840MM*H1600 |
Machine Weight | 100kg |
Product Limit(Length*Width) | 250*220mm |
