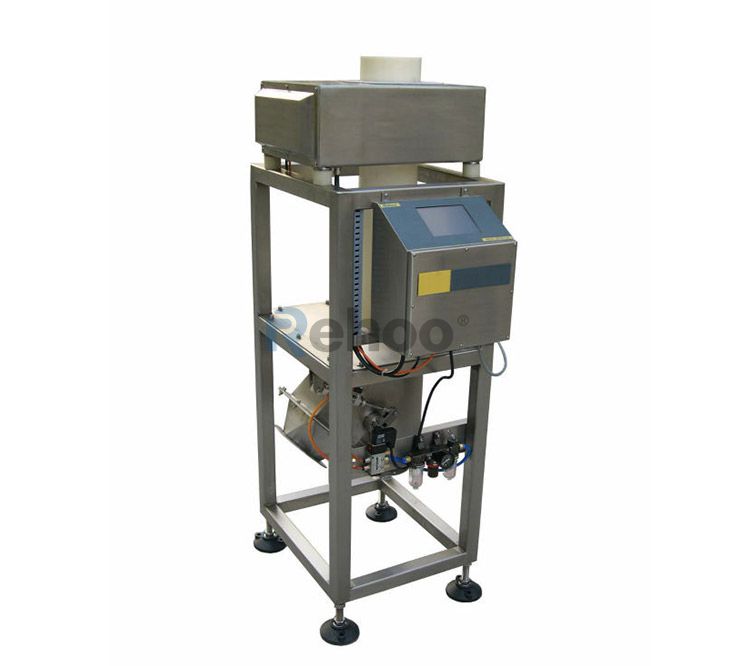

Metal Detector MDF
MDF
Applied to industrial pipeline metal detection
Caracteristicas
● Stainless Steel conveyor with high waterproof level design
● 100 product preset, Easy to shift and edit
● 2000 logs memory,easy to look up and print out
● Based on friendly touch screen operation
● High speed metal detection unit
● Multi-function operation system and multi-language for option
● Advanced product's effective learn
● Variety of peripheral system connection and setup
● Detection frenquency optional.(Factory preset)
● Special reject system design, suitable for powder and granular bulk materials
Presupuesto
| Specifications | |
| Model | MDF |
| Theory | Balanced Coil |
| Adjustment | Automatic or Manual |
| Standard tube size | Φ120mm |
| Alarm mode | Buzzer and Lamp(Optional) |
| Reject method | Quick Flap System |
| Power | AC110/220V 50-60HZ |
| Rated output | 200W |
| Dimension | 420mm(L)*500mm(W)*1300±10mm(H) |
| Weight | 88kg |
Sensitivity
| Aperture Size | Sensitive |
| 100mm | Fe0.8mm Sus1.5mm |
| 120mm | Fe1.0mm Sus2.0mm |
| 150mm | Fe1.2mm Sus2.5mm |
| 200mm | Fe1.5mm Sus3.0 mm |
